VSF(Virtual Switch Fabric)
SFP+ For Fiber Up-link Connectivity.

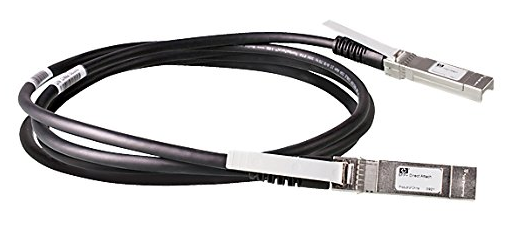

Aruba 10G SFP + DAC cable For stacking
Fig.1
We can configure Aruba 2930F Poe 48G switch in 4 switch stack via this configure.
Switch-1
HPe Switch# configure Terminal
HPe Switch# (config)# vsf member 1 priority 255 ! for commander switch default priority
128.
HPe Switch# (config)# vsf member 1 link 1 Ethernet 49
HPe Switch# (config)# vsf member 1 link 2 Ethernet 50 ( link 1
should be same in with 2 switch stacking) vsf member 1 link 2 Ethernet 50
HPe Switch# (config)# vsf enable domain 10 ! Y
Switch-2
HPe Switch# # configure Terminal
HPe Switch# (config)# vsf member 1 priority 100
HPe Switch# (config)# vsf member 2 link 1 Ethernet 49
HPe Switch# (config)# vsf member 2 link 2 Ethernet 50
HPe Switch# (config)# vsf enable domain 10 ! Y
Switch-3
HPe Switch# configure Terminal
HPe Switch# (config)# vsf member 1 priority 100
HPe Switch# (config)# vsf member 3 link 1 Ethernet 49
HPe Switch# (config)# vsf member 3 link 2 Ethernet 50
HPe Switch# (config)# vsf enable domain 10 ! Y
Switch-4
HPe Switch# # configure Terminal
HPe Switch# (config)# vsf member 1 priority 100
HPe Switch# (config)# vsf member 4 link 1 Ethernet 49
HPe Switch# (config)# vsf member 4 link 2 Ethernet 50
HPe Switch# (config)# vsf enable domain 10 ! Y
